CR-V1

Color: Silver / Titanium alloy, aluminum
Driver unit: Φ10mm Dynamic type
Output sound pressure: 105dBSPL/mW

イヤホンの解像度と
スピーカーの再生空間を両立

独自技術"WARPシステム"により実現したスピーカーの再生空間とイヤホンらしい細やかな表現力を併せ持ったCRシリーズのフラッグシップモデル。"WARPシステム"を主軸とした音作りを、二つの特許技術"SkIS"、"s.n.a" が支え、広々とした空間表現と高解像度を両立。 スピーカーでも、イヤホンでも味わうことのできない独自の音像体験をお楽しみください。

CR series flagship model with a brand-new technology “WARP system” generates a speaker like sound ambiance with a sensitive expression of earphone.A trinity of WARP system, patended technology SkIS and s.n.a system creates high resolution spacious sound.Experience the new sound no speaker nor earphone had ever produced.

唯一無二のサウンドを実現する
三つの独自技術

独自技術"WARPシステム"は、従来のイヤホンが抱える問題である頭内定位を軽減し、スピーカーのような空間表現を再現しました。特許技術"SkIS", "s.n.a"、2つの音響構造により高域から低域までを緻密に調律し、"WARPシステム"との組み合わせにより楽器それぞれの距離感まで感じられる没入感が得られます。

WARP technology revolutionize in-head localizing sound image that conventional ear phones have, and reproduce extensive speaker like sound ambiance. Combined with patented technology SkIS and s.n.a system which are in charge of fine adjustment from high to low frequency.

細部までこだわった
Made in JAPANの品質

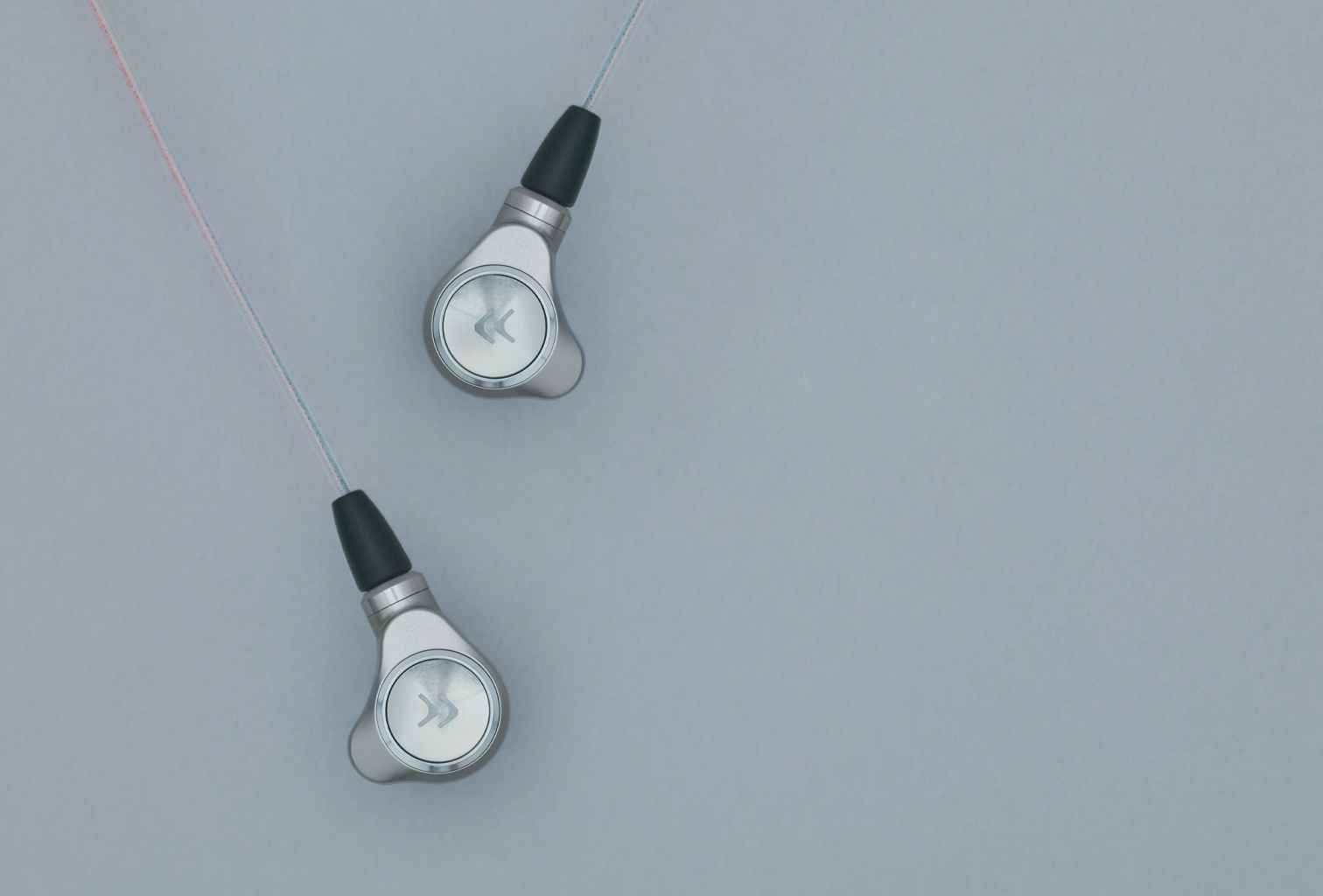

フロントハウジング部にチタン合金を採用することで、イヤホン独自のキレを残しつつ、軽量で音響特性に優れるアルミ素材をボディに採用することで、クリアな響きとストレスのない装着感を確保。着脱可能な付属ケーブルは、接続部に信頼性の高いφ2.5mmプラグ接続方式を採用。皮膜は絡みにくく断線が少ない独自開発のスパイラルケーブルになっており、耐久性に優れています。日本国内の工場で徹底的な生産管理を行い、大量生産では不可能な緻密な品質管理とバランス調整を行っています。

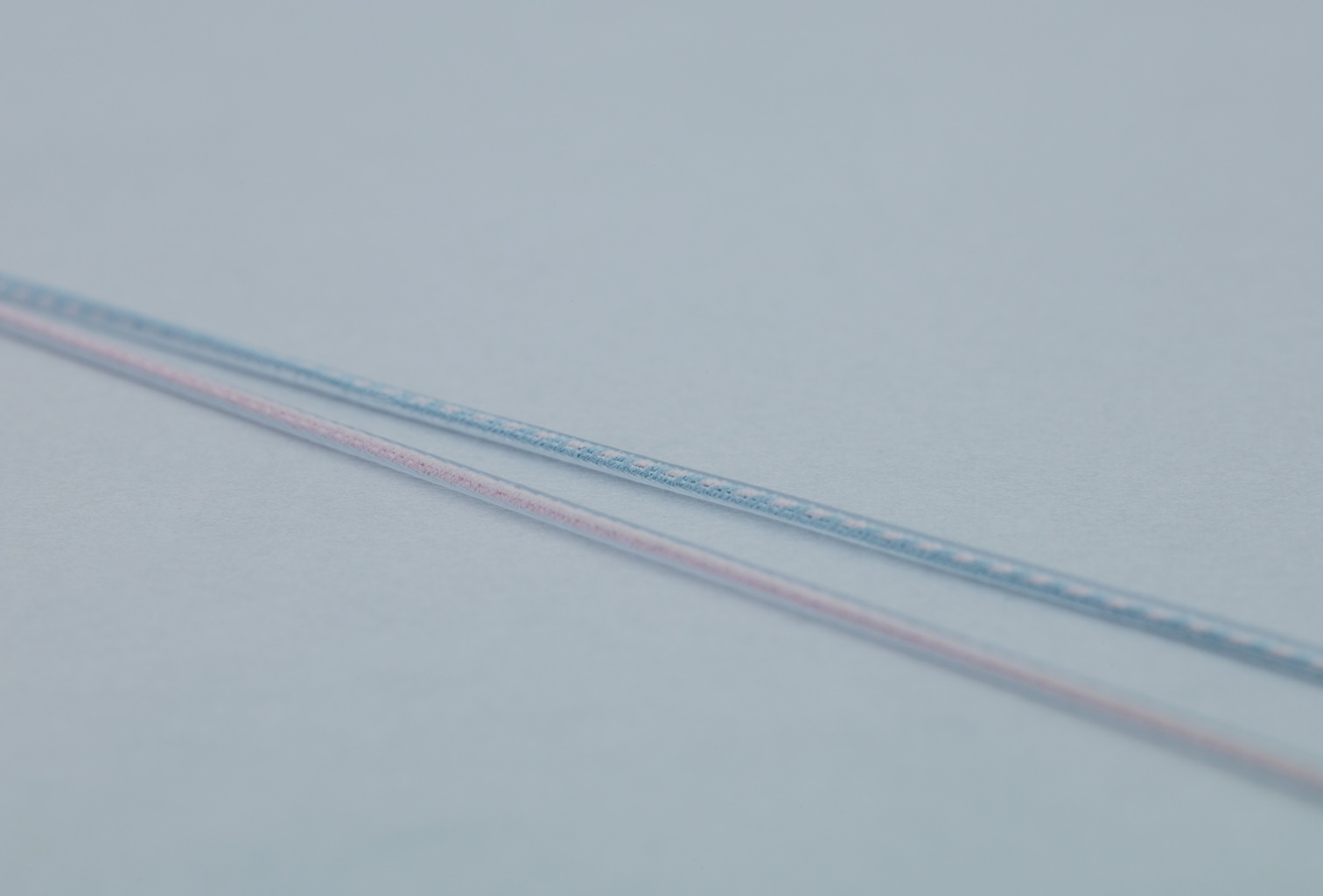

A titanium alloy, suitable material to reproduce a sound with a sense of speed is adopted for the front housing part, and by adopting a lightweight aluminum material excellent in acoustic characteristics for the body, a clear sound and a feeling of wearing without stress are secured. Attached cable is removable. The highly reliable φ2.5 plug connection method is adopted for the connection part. proprietary spiral cable that is less likely to be tangled and has less cable core breakage, and has excellent durability. With thorough production control is performing precise quality control and balance adjustment by Made in JAPAN.

脳が音を感じる仕組みに着目した
新技術"WARPシステム"

"WARPシステム"(Wide Area ReProduction - 特許番号:第6730384号)は、帯域・レベル等を調整したLチャンネルとRチャンネルの信号をそれぞれ反対側のチャンネルに混ぜ合わせるイヤホン向けの音響回路です。スピーカーのステレオ再生を聴いている時の状態を仮想的に再現し、従来のカナル型イヤホンではできなかった音の広がりを感じることができます。

WARP system: Cross mix specific frequency and sound level from L to R, R to L creating widen sound field. An acoustic circuit essentially effective for earphone.

カナル型イヤホン特有の
共振を抑える 特許技術"SkIS"

"SkIS"(Six kilohertz Intercept System - 特許番号: 第5696249号)は、ダイヤフラム裏の容積とドライバーフレームの空気穴、ドライバーキャップ部の容積の関係により、耳の中で耳障りな共振を起こす6kHzの音の再生を抑制する音響構造です。通常、ダイヤフラム裏の空気はダイヤフラムの振動を助けるバネのような働きをしますが、"SkIS"では6kHzの音域でダイヤフラム裏の空気の動きを制限します。これにより、他の音域に影響を与えずに6kHzの音域だけを抑制することができます。

SkIS is a 6kHz sound suppressing system which is carefully designed and achieved by the spatial volume behind diaphragm, the venthole on driver frame and spatial volume of driver cap.The air behind diaphragm acts like a spring supporting diaphragm vibration. SkIS carefully suppresses air movement behind diaphragm which acts on 6kHz sound range only and not effecting on other sound ranges.

左右のバランスを調整し
定位感を向上する"s.n.a"

"s.n.a"(Smart Nozzle Adjuster - 特許番号: 第6508687号)は、調整機構をノズルの中に配置することで、従来ではできなかった製造最終段階での微調整を可能にした音響構造です。左右のバラツキを抑えることができるため音の定位感を向上させ、緻密な音場表現を実現します。

An unprecedented sound adjustable system in the sound nozzle at the end of production assembly for a precise balancing of L/R for a precise sense of sound position.

CR-V1

Canal type earphone

生産終了のお知らせ

生産終了に伴う保守期間について

諸般の事情により、CR-V1の生産を終了します。
生産終了に伴うサポート期限についてお知らせ致します。

サポート期限: 2025年2月28日 まで
※サポート期間を過ぎた後は、故障等による修理対応は致しかねます。

カラー

シルバー

付属ケーブル

約1.2m(Y型) / Φ3.5mm金メッキプラグ(L型)OFC線スパイラルケーブル
(Φ2.5mm金メッキプラグ着脱式)
約1.2m(Y型) / Φ3.5mm金メッキプラグ(L型)銀メッキ線スパイラルケーブル
(Φ2.5mm金メッキプラグ着脱式)

付属品

TYPE EイヤーピースSS,S,L,LL(Mサイズは本体に装着)
イヤーフック、専用キャリングケース、取扱説明書、保証書

仕様

素材:チタン合金(フロントハウジング)、アルミニウム(センター・リアハウジング)
ドライバーユニット:Φ10mmダイナミック型
音響方式:密閉型
出力音圧レベル:105dBSPL/mW
再生周波数帯域:20Hz~20kHz
最大入力:200mW
公称ユニットインピーダンス:32Ω
質量:約15.8(ケーブル含まず)

Color

Silver

Cable

Approx. 1.2m(Y type)/ Φ3.5mm gold plated(L TYPE)OFC line spiral cable
(Φ2.5mm gold plated detachable plug)
Approx. 1.2m(Y type)/ Φ3.5mm gold plated(L TYPE) silver line spiral cable
(Φ2.5mm gold plated detachable plug)

Accessories

TYPE E ear tips SS, S, L, LL(M on product), Ear hook
Carrying case, Manual instruction, Warranty card

Specification

Material: Titanium alloy (front housing), aluminum (center, rear housing)
Driver unit: Φ10mm Dynamic type
Sound method: Closed type
Output sound pressure: 105dBSPL/mW
Frequency: 20Hz~20kHz
Max input: 200mW
Nominal impedance: 32Ω
Mass: Approx. 15.8g(cable not included)

Option

V1-CB200

V1-CB200

CRシリーズ専用OFC線スパイラルケーブル

約1.2m(Y型) / Φ3.5mm金メッキプラグ(L型)
OFC線スパイラルケーブル(Φ2.5mm金メッキプラグ着脱式)
OFC線ならではの量感溢れる低域と艶やかな中域をお楽しみいただけます。

V1-CB300

V1-CB300

CRシリーズ専用銀メッキケーブル

約1.2m(Y型) / Φ3.5mm金メッキプラグ(L型)
銀メッキ線スパイラルケーブル(Φ2.5mm金メッキプラグ着脱式)
銀メッキ線ならではの繊細な高域表現をお楽しみいただけます。
